Product Description

Model No.	SF - 1500 (For 1500t/h CSU) SF - 2000 (For 2000t/h CSU) SF - 3000 (For 3000t/h CSU)
SF - 3000 System Specifications
function	Hatch Shoulder additional excavation Swing Out and Digging Frame leveling for cargo excavation of the lower depths
Type	Swing In/Out
Drive Method	Automatic adjustment of the chain tension due to the hydraulic device Swing Method : Hyd. Cylinder x 2sets Swing Angle : 35
Support & Side Roller	Quantity : 8+8 sets / size : 400mm / material : S45C
Size (L x W x H)	7825 x 6800 x1000 (mm)

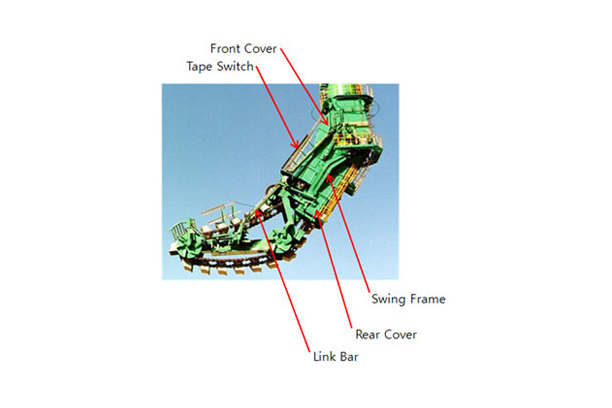

Components	Swing Frame, Link Bar, Front Cover, Rear Cover, Tape Switch, Bulldozer Liffting Hoist & Wire, Platform, Chain Guide Rail, Grease Pipe
Main Material	SM490Y, SS400, SUS304
