Product Description

Model No.	RF - 1500 (For 1500t/h CSU) RF - 2000 (For 2000t/h CSU) RF - 3000 (For 3000t/h CSU)
RF - 3000 System Specifications
function	The transfer of cargo from transportation to BE Boom Conveyor Belt through the rotation
Type	L-Type , Rotary Trough
Drive Method	(Automatic adjustment of the chain tension due to the hydraulic device) Type : Rack & Pinion Drive Speed : 5.8 rpm Drive Unit : 45kW x 2sets
Support & Side Roller	Quantity : 8+8 sets / size : 400mm / material : S45C
Size (L x W x H)	7825 x 6800 x1000 (mm)

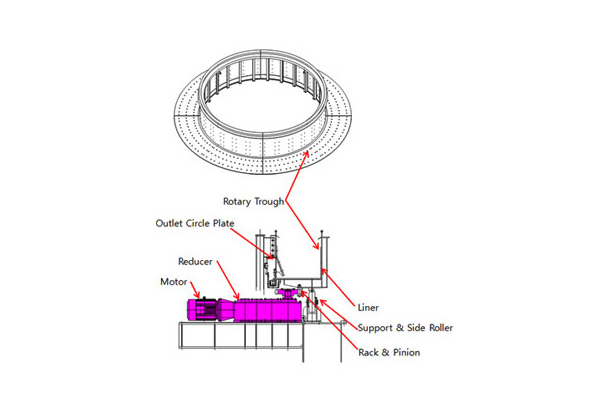

Components	Rotary Trough, Reducer, Elec. Motor, Rack & pinion, Support & Side roller, Outlet Circle Plate, Scraper, H/F Liner
Main Material	SS400, S45C, SCM440, H/F Liner
