Product Description

Model No.	DI - 1500 (For 1500t/h CSU) DI - 2000 (For 2000t/h CSU) DI - 3000 (For 3000t/h CSU)
DI - 3000 System Specifications
function	To allow the excavator by cargo ship to the end part of the BE bucket and Catenary tensioning and formation of Bucket Chain
Type	Telescopic Type
Chain Take-up Device	(Automatic adjustment of the chain tension due to the hydraulic device) Type : Hydraulic Cylinder Cyilinder Stroke : 1800mm Spped : Max. 4m/min
Size (L x W x H)	6950 x 3574 x 4025 (mm)

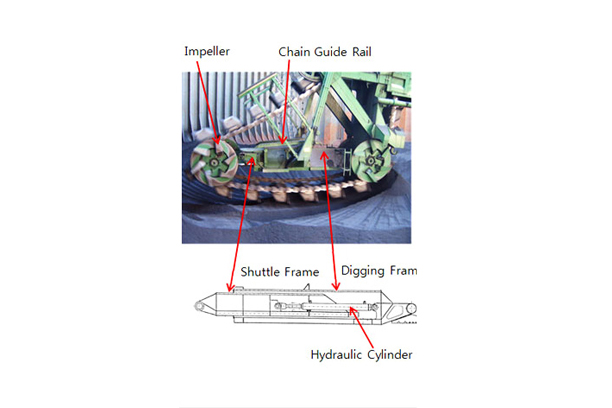

Components	Digging Frame, Shuttle frame, Impeller, Hyd. Cylinder, Shaft, Harrow Frame, Guide Roller, Chain Guide Rail, Tape Switch
Main Material	SM490A
