Name

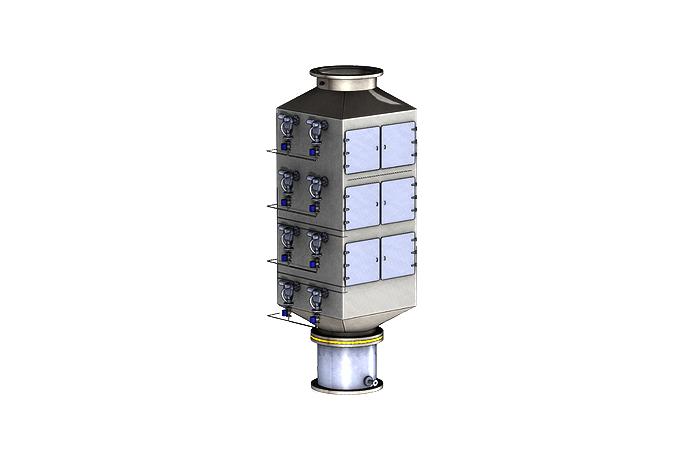

SCR System(Selective Catalytic Reduction System)

Series Engine Product
Product Description

Regulation about polluting substance come out the vessel exhaust gas have been strengthened.
Thus, sailing will be restricted by the effectuation of a treaty, Tier Ⅲ if the vessel doesn’t have system to remove nitrogenous compound.
SCR is an equipment to remove those nitrogenous compound.



Characteristics



▣ Design

Compact & Simple size

Standardized design to optimized in ship funnel



▣ Advantage

High Efficiency (High performance, low ammonia slip)

Design and Price Competition

Flexible and Competition Supply Chain

Neighboring Service



Technical Data

Composition Engine output(kW) Dimension(HxWxL) Mixer+pipe(DN)
Class 1 500~900 850x795x2,200 350
Class 2 910~1,400 1,165x1,100x2,400 450
Class 3 1,470~2,000 1,350x1,250x2,500 500
Class 4 2,100~3,000 1,630x1,400x2,600 700
Class 5 3,500 1,630x1,550x2,600 700
Class 6 4,000 1,630x1,700x2,600 750
Class 7 4,500 1,800x1,700x2,700 800
Class 8 6,000 1,950x2,050x3,000 900
Class 9 7,000 2,260x2,050,3,200 1,000
Class 10 8,000 2,260x2,350x3,200 1,000
Class 11 9,000 2,600x2,350x3,200 1,000
