Pilot Ladder Reel
[SPECIFICATION]
|
MODEL |
SWL |
DRUM SIZE |
HOISTING |
TRAVELLING METHOD |
DIMENSION (mm) |
||||||
|
(ton) |
(mm) |
MOTOR |
SPEED |
MOTOR |
SPEED |
A |
B |
D |
E |
F |
|
|
(kW) |
(m/min) |
(kW) |
(rpm) |
||||||||
|
SMPLR |
0.2 |
165 |
1.9 |
10~15 |
1.9 |
5~10 |
90 |
2150 |
2000 |
900 |
1400 |
|
0.3 |
165 |
1.9 |
10~15 |
1.9 |
5~10 |
90 |
2150 |
2000 |
900 |
1400 |
|
|
0.3 |
165 |
1.9 |
10~15 |
- |
- |
90 |
950 |
728 |
1990 |
2150 |
|
- WORKING AIR PRESSURE : 6~9 kg/cm²
- DRIVING POWER : AIR MOTOR , ELECTRIC MOTOR , MANUAL
- OTHER SPECIAL TYPE CAN BE MANUFACTURED BY CUSTOMER'S REQUEST.

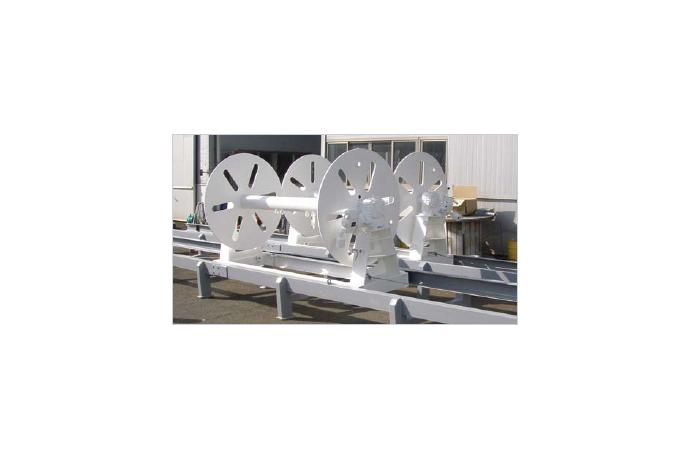

Fire Wire Reel
[SPECIFICATION]
|
MODEL |
WINDING LOAD |
DRUM CAPACITY |
HOISTING |
DIMENSION (mm) |
|||||||
|
(kg) |
(mm, m) |
MOTOR |
SPEED |
A |
B |
C |
D |
E |
F |
G |
|
|
(PS) |
(m/min) |
||||||||||
|
SMFWR |
200 |
Ø28 x 45 |
2.6 |
10 |
457 |
800 |
350 |
1015 |
700 |
690 |
1100 |
|
350 |
Ø38 x 60 |
2.6 |
10 |
508 |
900 |
506 |
1226 |
700 |
845 |
1150 |
|
|
750 |
Ø42 x 100 |
4.5 |
10 |
508 |
900 |
570 |
1290 |
700 |
910 |
1150 |
|
|
1000 |
Ø42 x 140 |
4.5 |
10 |
508 |
900 |
650 |
1369 |
700 |
1004 |
1150 |
|
- WORKING AIR PRESSURE : 6~9 Kg/㎠
- DRIVING POWER : AIR MOTOR , ELECTRIC MOTOR , MANUAL
- OTHER SPECIAL TYPE CAN BE MANUFACTURED BY CUSTOMER'S REQUEST.
