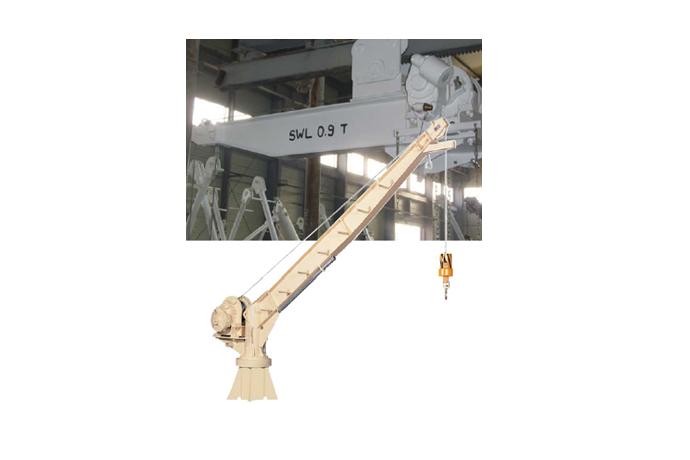

[SPECIFICATION - FUEL OIL HOSE HANDLING DAVIT]
|
MODEL |
SWL |
WORKING |
MAX. LIFT |
HOISTING |
SLEWING |
WIRE |
DIMENSION (mm) |
||||||
|
(ton) |
(m) |
(m) |
MOTOR |
SPEED |
MOTOR |
SPEED |
mm |
A |
B |
D |
E |
F |
|
|
(PS) |
(m/min) |
(kW) |
(m/min) |
||||||||||
|
SMFOD |
0.5 |
1~3 |
25 |
1.9 |
5~10 |
BY GUY ROPE |
6 |
800 |
1300 |
267 |
670 |
2200 |
|
|
1 |
1~3 |
25 |
3.3 |
5~10 |
8 |
800 |
1300 |
318 |
670 |
2200 |
|||
|
1.5 |
1~3 |
25 |
3.3 |
5~8 |
10 |
800 |
1300 |
355 |
670 |
2200 |
|||
|
2 |
1~3 |
25 |
5.4 |
5~8 |
BY MANUAL HANDLE |
10 |
940 | 1300 | 406 | 1000 | 2700 | ||
- WORKING AIR PRESSURE : 6~9 kg/㎠
- DRIVING POWER : AIR MOTOR , ELECTRIC MOTOR , MANUAL
- ADDITIONAL SLEWING DEVICE ARE RECOMMENDED FOR DAVIT WITH CAPACITY OF SWL 2TON OR ABOVE.
