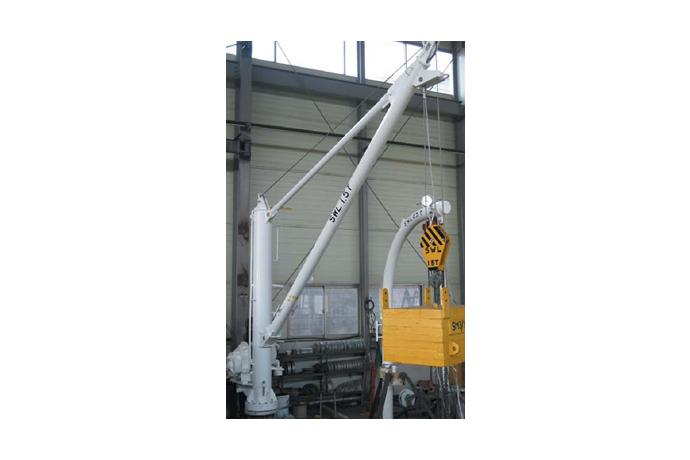

[SPECIFICATION - BOSUN STORE DAVIT / PUMP ROOM DAVIT]
|
MODEL |
SWL |
WORKING |
MAX. LIFT |
HOISTING |
SLEWING |
WIRE |
DIMENSION (mm) |
||||||
|
(ton) |
(m) |
(m) |
MOTOR |
SPEED |
MOTOR |
SPEED |
mm |
A |
B |
D |
E |
F |
|
|
(PS) |
(m/min) |
(kW) |
(m/min) |
||||||||||
|
SMBSD |
1 |
1 |
30 |
4.5 |
5~10 |
BY GUY ROPE |
10 |
800 |
2400 |
355 |
750 |
3500 |
|
|
1.5 |
1.5 |
30 |
4.5 |
5~10 |
10 |
800 |
2400 |
355 |
750 |
3500 |
|||
|
2 |
2 |
30 |
7.3 |
5~10 |
BY MANUAL HANDLE |
12 |
940 |
2500 |
406 |
750 |
3500 |
||
|
2.5 |
2.5 |
30 |
7.3 |
5~10 |
12 |
940 | 2500 | 457 | 750 | 3500 | |||
- WORKING AIR PRESSURE : 6~9 kg/㎠
- DRIVING POWER : AIR MOTOR , ELECTRIC MOTOR , MANUAL
- ADDITIONAL SLEWING DEVICE ARE RECOMMENDED FOR DAVIT WITH CAPACITY OF SWL 2TON OR ABOVE.
