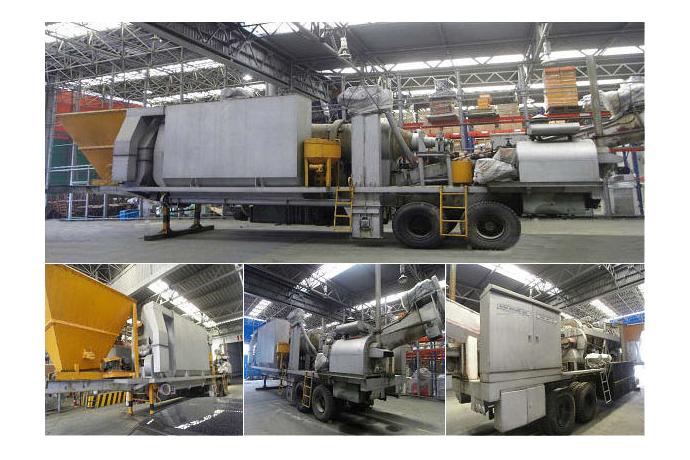

KumKang Plant is supplying the excellent asphalt mixing plant mounted on a trailer for the convenience of moving & installation with various type of model including a special type manufactured with the customized design according to the customer’s request.
Specifications of Stationary Asphalt Mixing Plant
| Model | KAPP30 | KAPP45 | KAPP60 | KAPP100 |
| Capacity | 30t/h | 45t/h | 60t/h | 100t/h |
| Dryer Dimension | Ø1500x7000mm | Ø1550x7000mm | Ø1650x7500mm | Ø1700x7700mm |
| Power | 2.2kw x 4 | 3.7kw x 4 | 3.7kw x 4 | 5.5kw x 4 |
| Burner Heat Capacity | 200 l/h(MAX) | 300 l/h(MAX) | 500 l/h(MAX) | 600 l/h(MAX) |
| Burner Blower Power | 5.5kw | 7.5kw | 1.1kw | 1.5kw |
| Circulation Blower | 200m³/min 100mmaq |
300m³/min 150mmaq |
450m³/min 200mmaq |
450m³/min 350mmaq |
| Circulation Blower Power | 11kw | 15kw | 18.5kw | 30kw |
| Dust Collector | Cyclone | |||
| Aggregate Scale | 45 kg | 600 kg | 900 kg | 1300 kg |
| Asphalt Scale | 60 kg | 100 kg | 150 kg | 200 kg |
