◈ Specification
| No | SIZE(Ø) | MODEL | CAPACITY (㎡/min) |
T.PRESSURE (mmAq) |
MOTOR(Kw) | Remark |
| 1 | 700 | KKCDC- | 600 | 250 | 22ｘ2=45 | Portable |
| 2 | 900 | 1000 | 250 | 30ｘ2=60 | ||
| 3 | 1100 | 1400 | 250 | 37ｘ2=75 | ||
| 4 | 1100 | 1700 | 250 | 45ｘ2=90 | ||
| 5 | 1200 | 2000 | 250 | 55ｘ2=110 | ||
| 6 | 1200 | 2400 | 250 | 75ｘ2=150 | ||
| 7 | 1400 | 2800 | 300 | 90ｘ2=180 | ||
| 8 | 1600 | KKCDC- | 3000 | 110 | Stationary | |
| 9 | 1700 | 3600 | 150 |
◈ Principle
By applying the washing tower principle, after through the water spraying facility and the dust collecting filter, the dust and elements of contaminated gas shall be stayed inside the dust collector. As the cleaned air is to be discharged to the outside of the dust collector by the blower with forced power, it plays a ventilator function as well.
◈ Features
Maximizing the dust collecting efficiency in a short time by wet stream spraying function with high pressure.
Maximizing the cleaning function of toxic gas and dust.

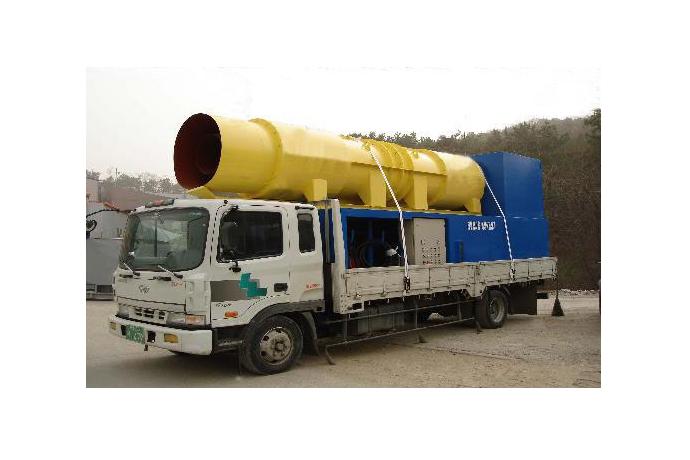

Convenient to move since the dust collector mounted on a truck.
Easy to connect electrical power to the attached power control panel.
A long lasting facility with long life time.
Easy to handle and convenient with the reservation set-up function.
◈ Target materials
Dust and toxic gas in a tunnel
◈ Applied Field
Road, tunnel for rail road, subways, large scale storage facility, and a foundation construction site
★ Also dry type dust collectors are available by request.
Complex Fertillzer & Organic Fertillzer Plant
As the producing plant of granular type organic complex fertilizer and granular type chemical complex fertilizer that is essential in the agricultural sector, the plants of annual production capacity of 10,000 M/T~300,000 M/T are available by the turnkey basis with our design, manufacturing, commissioning and trial production service.
Also we offer the service of designing, manufacturing, technical transfer (drawings) for the production plant of special purpose fertilizer or the drying facility for sludge & minerals according to the request.
Other Plant
