HP Vaporizer for RV/FSRU

Series Marine
Product Description

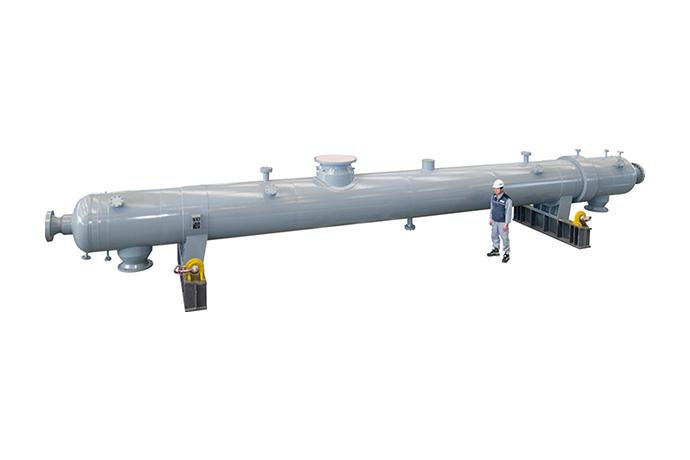

HP Vaporizer for RV/FSRU

LNG that is being supplied from RV/FSRU(combination of LNG Tanker, Re-gasification facility and Gas unloading facility) by HP LNG Pump, is vaporized by HP Vaporizer. The seawater is utilized as a source of heat that vaporizes LNG, and also if the seawater temperature falls down, it will be heated by with Seawater Heating System. In such case, DongHwa Entec’s Seawater Heater may be used.


LNG RV/FSRU Regasfication System

sea water direct heating
combined open/closed loop with seawater and steam heating


- Min. equipment
- Control simple
- Min. Energy consumption
- High pressure vaporizer : Shell and Tube type heat exchanger


General Design Data


ITEM200 MMSCFD150 MMSCFD
Surface (m²)Gross 943.66Gross 806.01
Heat exchanged (kW)36,65628,031
Design pressure (barg)Shell 7.0 / Tube 135.0Shell 7.0 / Tube 135.0
Design codeASME, ClassASME, Class
TubesOD : 19.05mmLength : 13.50mOD : 19.05mmLength  : 13.00m
Shell ID1450mm1350 mm

Design Concepts
A. Steady Uniform Flow
Distributor installation on the channel

B. Anti-corrosion(Material of Tube : SMO 254)
To prevent corrosion due to seawater

C. Anti-Freezing
– Seawater inlet located in the low-temperature region
– To minimize shell side dead zone


D. Structural Stablility evaluation / Quality Assessment






LNG Heater / Vaporizer

DongHwa Entec heat exchangers for LNG applications are of the shell and tube design and delivered for any BOG or LNG vapor duty according to customer specifications.Materials are typically 304L or 316L. Instrumentation and control valves will be part of the supply scope.

LNG Heater / Vaporizer – Test Model

Verification Tests for Development The DongHwa Steam Heating LNG Vaporizer is a highly reliable vaporizer development through extensive verification tests as shown left.

LNGC – N2 Compander Package Unit

N2 Compander is a re-liquefaction equipment which will be installed inside the 216K LNG vessel for the first time, now being built by three big domestic shipyards. It uses the nitrogen of extremely lowered temperature to change the natural boil-off gas, which originates from the cargo tanks of low temperature, to LNG and gets it back to the cargo tank.

LPG Cargo Heater / Vaporizer

DongHwa cargo heaters and vaporizers are delivered as separate units or combined for both duties in the same shell.Typically cargo heaters are designed for sea water cooling with sea water on the shell side and tubes of corrosion resistant high Ni-alloy stainless steel 904L. Heat exchangers in all Titanium are also available.




LPG Glycol Tank / Heater
LPG Glycol Heater
