Name

FS-Flex D

Series Fire Stop System
Product Description

FS-Flex D

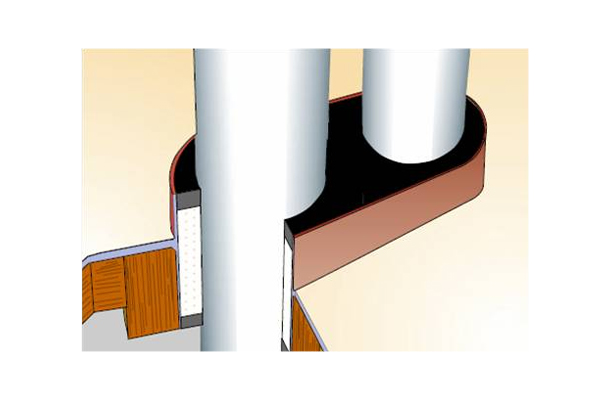

FS-Flex D is a single- or multi-pipe penetration seal developed to meet the requirements set by IMO Resolution A.754 (18).
It is intended for use in both deck and bulkhead penetrations, and it is suitable for use with welded-in sleeves or in connection with prefabricated bolted-in designs.
FS-Flex D stops propagation of fire, smoke, gas, water, dust and noice. The elasticity and strength of the sealing material offers a flexible seal that resists large movements and strong vibration without cracking, deformation or loss of adhesion.
FS-Flex D is not intended for areas continuously immersed by water.


Technical Properties – Installed as FS Flex D

Fire RatingA60
Pressure Resistance2.5 Bar(o)
Blast Impact1.0 Bar(o)
Sound Deadeningca. 40 dBA
Approved Pipe Dia.NB 200 (8″)
Thickness of Silicone Sealant2 x 15 mm
Seal Thickness (total)

200mm



Technical Properties – Fire Sealant 3000
ColorBlack, White or Gray
Density1400 kg/㎥
Application Temperature5 – 35°C
Working Temperature-65°C to 250°C
Curing Time (15mm thk)ca. 2 weeks
Working Time20 – 30 minutes
Elongation1300 %
Hardness Shore A15 points
Tensile Strength0.7 MPa
Halogen Content< 2 ppm
Electrical PropertyInsulating
Shelf Life12 months


Technical Properties – D-24B Calcium Silicate Blanket

ColorOff-white
Density96 kg/㎥
Halogen Content< 2ppm
Working Temperature1200°C
