KANGNAM Corporation

FRP, Aluminum and Steel hull vessel builder, steel structure for ship building industry, FRU (Floating Regasfication Unit)
Name

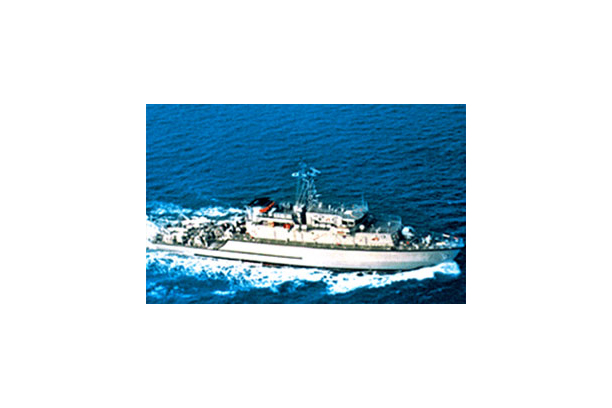

F.R.O Vessel (Mine Sweeping Hunter Craft)

Series Shipbuilding
Product Description

DIMENSIONS59.40 M × 10.50 M × 7.35 M
DISPLACEMENT900 tons at full load
SPEEDMAXover 15 Knots
CRUISING10 Knots
CRUISING RANGE3,000 N.M
COUNTERMEASURESVariable Depth Sonar
Mechanical Sweep Gear
Combined Influence Sweep Gear
2-MDVs
1-SSS

MAIN FEATURES

- Excellent shock resistant FRP Monocoque(frameless)hull structure against the underwater explosion
- Low acoustic design to minimize the underwater radiated noise signature
- Application of special EMI shieling Method


DESCRIPTION

MSH(Mine Sweeping Hunter Craft) is new generation and the latest model that has been built on the basis of MHC(Mine Hunting Craft)’s technical know-how created by our technical staffs. From 1993, it was starting with basic design to ship-building completion in 1999. MSH has function of both Mine sweeping and Mine hunting, Therefore MSH can activate not only contribution of efficient tactics and strategies but also security of coastal area and ocean road, MSH has capability of activating and operating mine hunting system equipped at rough sea and deep sea. This MSH has been more upgraded to equip systems comparing to existing one. And also the execution of “Real Shock Test” was approved as a best quality proof.
