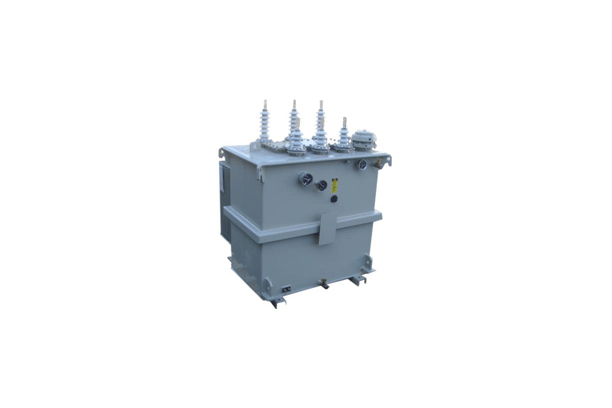

DISTRIBUTION SUBSTATION TRANSFORMER (100~3,000kVA)

Series Sub-Sytem
Product Description

HAN CHANG Distribution Substation Transformers are designed, manufactured and tested accordance with IEC 76 and its equivalent standards. Standard type transformers are well suited for serving both industrial and commercial applications : the small, compact design saves valuable space and the lighter weight makes handling and installation easier and cost competitive. Along with the standard types, a variety of options are available to meet the customer’s specific requirements


Specification







Capacity 100KVA ~ 3000KVA

Initial Voltage 22900V,6600V,3300V,480V,440V,380V,220V

Secondary Voltage 220V,380,V440V,480V,3300V,6600V,22900V

Temperature Increase Oil Temperature 50℃, Winding Temperature 55℃

Dielectric 3KV~50KV

Impluse Full Wave 45KV~150KV ,Chop Wave 50KVA~165KVA


Component
