Name

Corrugated Finwal

Series Transformer
Product Description


Specification

Capacity  2000KVA~100MVAa

High Voltage  138000V,69000V,38000V,22900V,6600V,3300V

Low Voltage   220V,380,V440V,480V,3300V,6600V, 22900V, 69000V,38000V

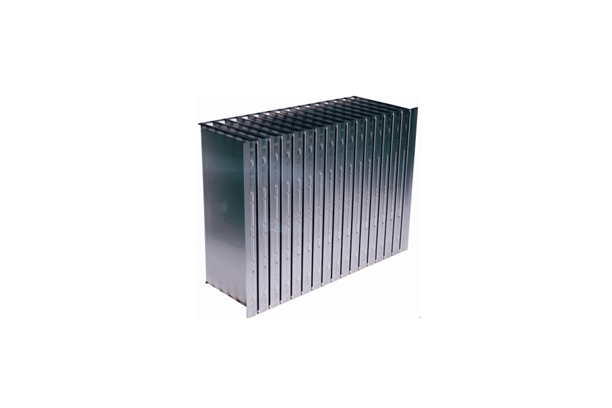

Corrugated tank features

- Reduce costs by around 40% when compared to other designs

- Compact design and smaller

- Substantially less oil used

- Further improved heat dissipation by usings

  •  dimples/embossments
  •  fins which incorporate headers

- Free of charge technology for optimum tank design cost/performance


Capacity of Corrugated tank design

- Fin length 400 ~ 1600 mm

- Fin height 50 ~ 400 mm

- Embossment(One/Two), Header

- Cold steel thickness 1.0mm, 1.2mm, 1.5mm

- Capability of manufacturing tank walls for sizes


  100 kva to 10 MVA



Test system

- Tank is tested by Robot & Real tracking Sensors for Leakage
