Product Description

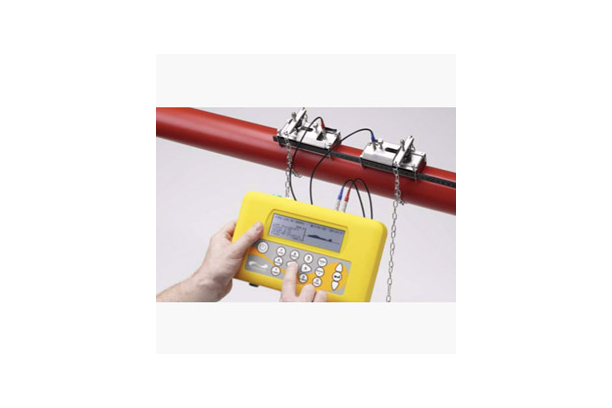

EQUIPMENT TYPE	Portable Ultrasonic Flowmeter PORTAFLOW 330
Flow Range	0.1m/sec to 20m/sec bi-directional
Display	64 x 240 pixels graphic display
‘A’ Transducers in mounting rail	- 13mm OD to 115mm OD B36
‘B’ Transducers in mounting rail	- 50mm OD to 2000mm OD A36
Transducer Operating Temp	– ‘A’&‘B’ -20°C to +135°C. ‘D’ -20°C to +80°C. ‘A’&‘B’
Outputs	– Opto Isolated 0/4 –20mA; RS 232/USB; 5v pulse @ 1 pulse/sec max.
Data Logging	– 200,000 data points. Up to 20 named recording blocks. Data displayed locally in text or graph format. Real time or stored. Can be downloaded via RS232 or USB port to Windows based PC
