Name

Analysis

Model OS-ANALYSIS-006
Series Analysis
Product Description

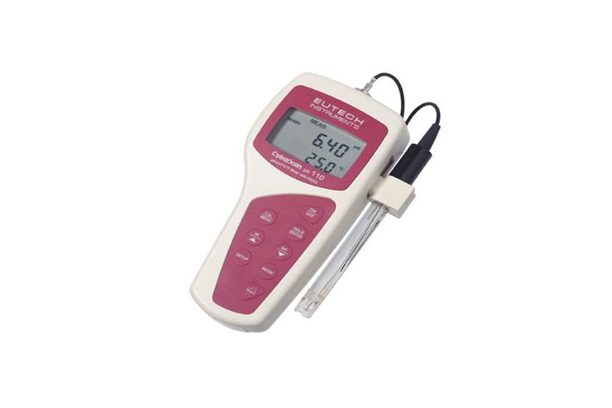

EQUIPMENT TYPEPH METER CyberScan pH 110
pH Range-2.00 to 16.00 Ph
Millivolt Range-1999 to +1999 mV
Relative mV Range+ 1999 to -1999 mV
Temperature Range-10.0 to 110.0 ºC (14 to 230 °F)
Temperature CompensationAutomatic / Manual (0 to 100 ºC)
No. Of pH Buffer ValuesUSA: pH 1.68, 4.01, 7.00, 10.01 & 12.45
NIST: pH 1.68, 4.01, 6.86, 9.18, & 12.45
DIN: pH 1.09, 3.06, 4.65, 6.79, 9.23 & 12.75
PWB: pH 4.10 and 6.97
Environmental Requirements0 to 50 °C (32 to 122 °F)
InputsBNC, 2.5 mm phono jack, power jack
OutputRS232C
Weight: & DimensionsMeter: 18.7 x 9 x 4 cm; 290 g
