Finned Tubes

Series Manufactures & Services
Product Description



DAECHANG has proud to produce the high quality spiral fin tubes with strict adherence to an internal quality process developed to comply with internamtional standards and customer specifications with 5 sets of state-of-the-art finning machines, and this is its great advantage to complete with an others, such as high efficiency and low cost.


DAECHANG finned tubing extends heat transfer surface that provides maximum efficiency in heat exchange applications from exhaust hot gas to a contained liquid process. DAECHANG offers both solid and serrated welded finned tubes to be used in HRSG, Petro-chemical, Boiler plants, Economizer, Gas Collers, and Heat exchangers in a wide range of applications.

 Solid fins are recommended for contaminated gas streams where oil, coal, wood or other high fouling are used. Serrated fins are primarily used in clean gas streams. Daechang Spiral Fin Tubes are produced with state of the art equipment with strict adherence to an internal quality process developed to comply with International Standards and Customer Specific-ations.

The result has been a controlled process that produces superior quality continuous fin to tube bonding, while maintaining low penetration resulting in minimal effects to the tube base materials. This process has been developed in close cooperation with a Specialist from Aalborg Industries, Inc., a leding designer of HRSG equipment.





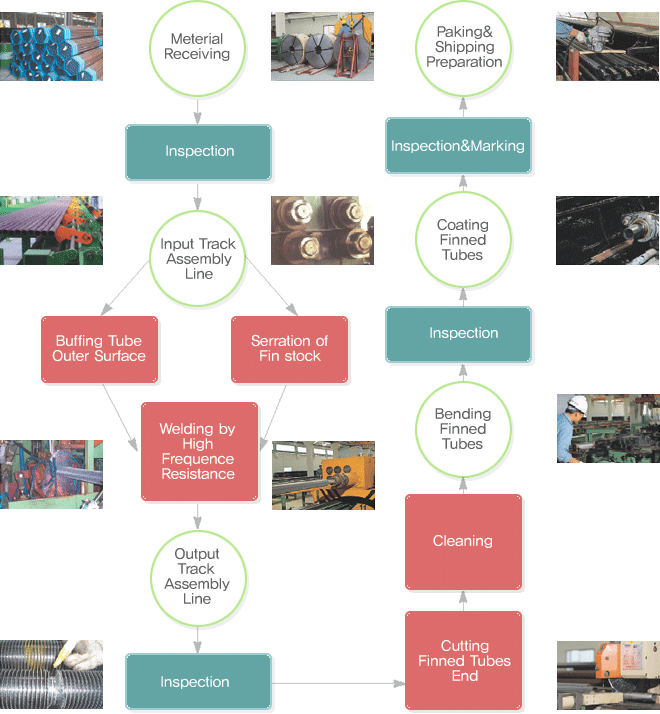

DAECHANG HRSG Finned Tubes




DAECHANG HRSG Finned Tubes  1

Daechang Spiral Finned Tubes are produced with state of the art equipment with strict adherence to an internal quality proess developed to comply with International Standards and Customer Specifications. The result has been a controlled process that produces superior quality continous fin to tube bonding, while maintaining low penetration resulting in minimal effects to the tube base materials.

This process has been developed in close cooperation with a Specialist from Aalborg Industries, Inc., a leading designer of HRSG equipment.

The following data is an example of production qualification test records for spiral finned tube for a HRSG system.

Note the bond ratio to fin thickness results exceed the requirements of both the International Standard and our Customers Specification. Requirement is for the bond of the fin to tube to be 90% of the actual fin width for 90% of the circumference of the tube.



MaterialSizeTest Result
DimensionalBond Ratio of WeldTensile StrengthHardness(Hv)
Tube:SA178
         38.1Φmm×2.67t

Fin:A1008
         1.27t×19.05mmW
Fin Pitch:6Fins/in
Fin Height:18.05mm

Serration Width : 4.37mm
GoodWeld width : 124%
Weld penetration:98%
Average 62Ksi
(STD.Min.25Ksi)
Accept
(500kgf, 30Sec.)
Tube:SA213
         50.8Φmm×6.6t

Fin:A240-409
         1.2t×12.7mmW
Fin Pitch:4Fins/in
Fin Height:12.7mm

Serration Width : 4.37mm
GoodWeld width : 116%
Weld penetration:100%
Average 60Ksi
(STD.Min.40Ksi)
Accept
(500kgf, 30Sec




DAECHANG HRSG Finned Tubes  2DAECHANG HRSG Finned Tubes  3

Indoor Shop Area
  - Finning Shop : 2,805㎡
  - Coating Shop : 315㎡

3Bay : 11M.W×85M.L/Bay



Finning Facility Capability

Tube outside
diameter
Fin thicknessFin heightFin pitchFinning length
Min. 1inch
(25A)

Max. 8inch
(200A)
Min. 0.032inch
(0.8mm)

Max. 0.098inch
(2.5mm)
9mm ~ 38mmMin. 1.5FPI
(60FPM)

Max. 8FPI
(318FPM)
Max. 85ft 3in
(26m)



Line Capacity (Including sub-supplier)


Types of materialLine CapacityAnnual Capacity
No. of M/CPer dayPer monthPer yearProduct sizeWorking time
DAECHANG HRSG Finned Tubes  4 Tube:SA178, A210, A192,
  A213-T11~91, Super 304H, Duplex
DAECHANG HRSG Finned Tubes  5 Fin:A1008, 304SS, 409SS, 410SS
1(one)mill1,586m
(103pcs)
41,184m
(2,674pcs)
494,208m
(32,091pcs)
DAECHANG HRSG Finned Tubes  6 Tube:50.8mmΦ×21mL
  SA178Grc

DAECHANG HRSG Finned Tubes  7 Fin:1.27t×19.05mm W
  A366
  Serrated

DAECHANG HRSG Finned Tubes  8 FPI:6Fins/inch
DAECHANG HRSG Finned Tubes  9 22 hrs/day


DAECHANG HRSG Finned Tubes  10 26 datys/month



DAECHANG HRSG Finned Tubes  11 12 months/year




DAECHANG HRSG Finned Tubes  12DAECHANG HRSG Finned Tubes  13

Indoor Shop Area
   - Finning Machine : 240Kw×450KHz×7
     (SETS)
   - Bending Machine : 0.5B~3B×25M.L
