Woven

Production Capacity

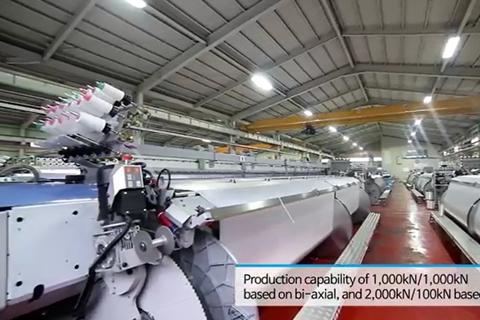

30 units of broad width (5.4m width) weaving machines for polyester woven geotextile
The largest number of units owned by a single company in the world
Monthly average production of 1.5 million square meters

Types

ㆍDJ Mat : Bi-axial woven geotextile made of polyester multifilament yarn
ㆍDJL Mat : Uni-axial woven geotextile made of polyester multifilament yarn
ㆍDJP Mat : Bi-axial woven geotextile made of polypropylene multifilament yarn

Product Range

ㆍUni-axial : Upto 2,000kN
ㆍBi-axial : Upto 1,000 by 1,000kN

Function

ㆍReclamation
ㆍSeparation
ㆍStabilization
ㆍFiltration
ㆍErosion Control

Application

ㆍMarine Structure
ㆍEmbankment on soft soil foundation
ㆍRoad & Rail construction
ㆍPort & Airport Runway

Ultimatex® PET Woven Geotextile's guide (Bi-axial)

		Weight per unit area	Tensile Strength in both Direction	Elongation In both Direction	Permeability	Fiber identification	Container Loading Capacity
Test Method		ASTM D 5261	ASTM D 4595	ASTM D 4595	ASTM D 4491	ASTM D 276	20 Feet	40 Feet
Unit criteria		≥ g/㎡	≥ kN/m	≤ %	≥ m/sec	-	(㎡)	(㎡)
PET	DJ5	160	50	10	1 X 10-4	Polyester	60,000	120,000
	DJ6	180	60				58,000	100,000
	DJ8	240	80				50,000	80,000
	DJ10	300	100				37,500	70,000
	DJ15	450	150				28,000	45,000
	DJ20	600	200				18,000	33,000
	DJ25	750	250				15,000	27,500
	DJ30	900	300				13,000	22,000

Ultimatex® PET Woven Geotextile's guide (Uni-axial)

		Weight per unit area	Tensile Strength		Elongation		Permeability	Fiber identification	Container Loading Capacity
		Weight per unit area	Wrap	Weft	Wrap	Weft	Permeability	Fiber identification	Container Loading Capacity
Test Method		ASTM D 5261	ASTM D 4595		ASTM D 4595		ASTM D 4491	ASTM D 276	20 Feet	40 Feet
Unit criteria		≥ g/㎡	≥ kN/m		≤ %		≥ m/sec	-	(㎡)	(㎡)
PET	DJL10	230	100	50	10	10	1 X 10-4	Polyester	50,000	90,000
	DJL15	300	150						35,000	65,000
	DJL20	400	200						25,000	50,000
	DJL30	550	300						20,000	40,000
	DJL40	700	400						15,000	30,000
	DJL50	850	500						12,000	23,000
	DJL60	1,000	600						10,000	20,000
	DJL80	1,400	800						8,000	15,000

Ultimatex® PP Woven Geotextile's guide

		Weight per unit area	Tensile Strength in both Direction	Elongation In both Direction	Permeability	Fiber identification	Container Loading Capacity
Test Method		ASTM D 5261	ASTM D 4595	ASTM D 4595	ASTM D 4491	ASTM D 276	20 Feet	40 Feet
Unit criteria		≥ g/㎡	≥ kN/m	≤ %	≥ m/sec	-	(㎡)	(㎡)
PP	DJP5	180	50	25	1 X 10-4	Polypropylene	58,000	100,000
	DJP7	240	70				50,000	90,000
	DJP10	330	100				35,000	60,000
