Pilot Operated Safety Relief Valve

Model HSP-OVT (SP00C)
Series Cryogenic & Plant Valve
Catalog mt-h_81400_gxlvlv.pdf
Product Description

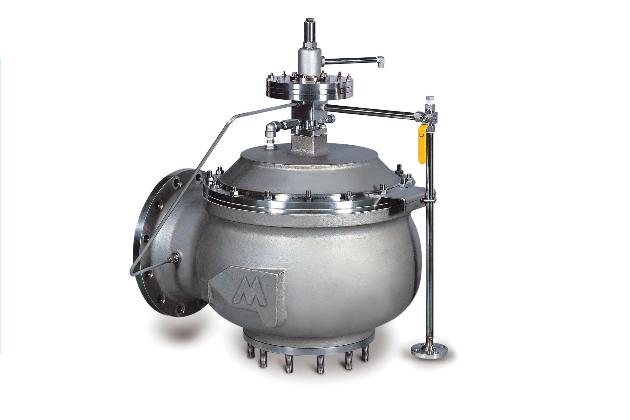

Mt.H Pilot Operated Safety Relief Valve HSP-OVT (SP00C)

* Introduction

Pilot Operated Safety Valve has been designed and manufactured under the ISO 9001 quality system and ASME code, using high grade measuring equipments and facilities.

* Application

API CODE

ANSI CODE

IGC CODE/IMO

Rule for Classification of Shipping

* Special Feature

Compact, Simple and Smart Concept

Full Lift of Disc at the set pressure

Easy Maintenance and the Adjustment of set pressure

Min. Loss of medium and keeping of medium from pressure vessel through smaller Blow-down operating range

Pressure : 0.15~35PSI / 0.01~2.5kg f/㎠ / 0.001~0.25MPa

Fluid : Liquefied Gas/LNG/LPG/LEG/EQUIVALENT VAPOUR

Temperature : Cyogenic~Ambient Temp.

[-196℃~125℃/~321℉~260℉]
