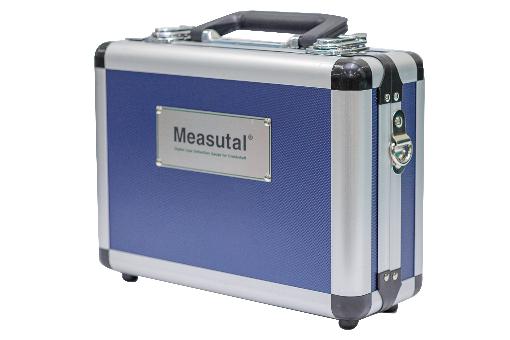

Name	MEASUTAL
Series	Sensor / Measurement Equipment

Product Description

Product Features

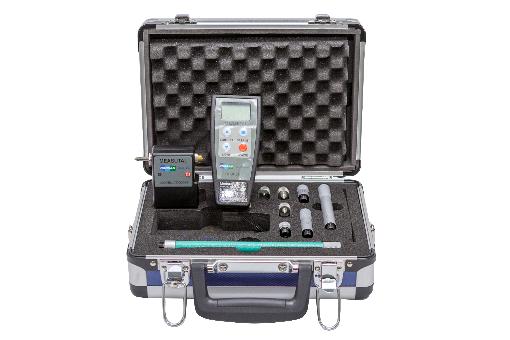

A powerful and precise digital crankshaft deflection gauge

Specification

Additional Information

Measuring range	75~490mm
Wireless comm	Distance 30m (open space)
Temperature range	80'C (max.)
Power Consumption	24 hours continuous operation
Wireless communication	Bluetooth
