| TYPE | 2 x 1 | 4 x 1 | 6 x 1 | 8 x 1 |
|---|---|---|---|---|
| V1 x H1 in mm | 101 x 120 | 160 x 120 | 218 x 120 | 277 x 120 |

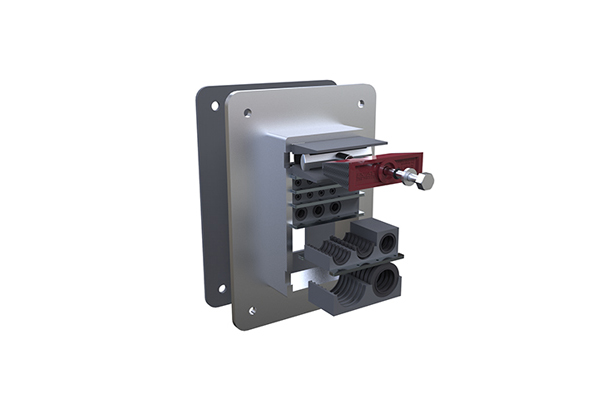

CSDS-Single Type Frame
| CSDS | 2 x 1 | 2 x 2 | 2 x 3 | 2 x 4 | 2 x 5 | 2 x 6 | 2 x 7 | 2 x 8 | 2 x 9 | 2 x 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| V x H in mm | 101 x 120 | 101 x 246 | 101 x 372 | 101 x 498 | 101 x 624 | 101 x 750 | 101 x 876 | 101 x 1002 | 101 x 1128 | 101 x 1254 |
| CSDS | 4 x 1 | 4 x 2 | 4 x 3 | 4 x 4 | 4 x 5 | 4 x 6 | 4 x 7 | 4 x 8 | 4 x 9 | 4 x 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| V x H in mm | 160 x 120 | 160 x 246 | 160 x 372 | 160 x 498 | 160 x 624 | 160 x 750 | 160 x 876 | 160 x 1002 | 160 x 1128 | 160 x 1254 |
| CSDS | 6 x 1 | 6 x 2 | 6 x 3 | 6 x 4 | 6 x 5 | 6 x 6 | 6 x 7 | 6 x 8 | 6 x 9 | 6 x 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| V x H in mm | 218 x 120 | 218 x 246 | 218 x 372 | 218 x 498 | 218 x 624 | 218 x 750 | 218 x 876 | 218 x 1002 | 218 x 1128 | 218 x 1254 |
| CSDS | 8 x 1 | 8 x 2 | 8 x 3 | 8 x 4 | 8 x 5 | 8 x 6 | 8 x 7 | 8 x 8 | 8 x 9 | 8 x 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| V x H in mm | 277 x 120 | 277 x 246 | 277 x 372 | 277 x 498 | 277 x 624 | 277 x 750 | 277 x 876 | 277 x 1002 | 277 x 1128 | 277 x 1254 |
Base Mold
| Base Mold Name | Cable | Adapter | H x V x L | D1 | d1 | D2 | d2 | S |
|---|---|---|---|---|---|---|---|---|
| ESC-B01 | ∅11.0- ∅12.9 | ESC-A01-S | 20 x 10 x 60 | ∅11 | 5.5 | ∅14 | 7.0 | 10.0 |
| ESC-A01-M | ||||||||
| ESC-A01-L | ||||||||
| ESC-B02 | ∅22.0- ∅23.9 | ESC-A02-S | 30 x 15 x 60 | ∅22 | 11.0 | ∅25 | 12.5 | 15.0 |
| ESC-A02-M | ||||||||
| ESC-A02-L | ||||||||
| ESC-A02-XL | ||||||||
| ESC-B02-1 | X | ESC-A02-XXL | ∅24 | 12.0 | ∅26 | 13.0 | ||
| ESC-B03 | ∅31.0- ∅33.9 | ESC-A03-S | 40 x 20 x 60 | ∅31 | 15.5 | ∅35 | 17.5 | 20.0 |
| ESC-A03-M | ||||||||
| ESC-A03-L | ||||||||
| ESC-B03-1 | X | ESC-A03-XL | ∅33 | 16.5 | ||||
| ESC-B04 | ∅49.0- ∅51.9 | ESC-A04-S | 60 x 30 x 60 | ∅49 | 24.5 | ∅53 | 26.5 | 30.0 |
| ESC-A04-M | ||||||||
| ESC-A04-L | ||||||||
| ESC-A04-XL | ||||||||
| ESC-A04-XXL | ||||||||
| ESC-B04-A | X | ESC-A04-XXXL | ∅50 | 25.0 | ||||
| ESC-B05 | X | ESC-A05-S | 90 x 45 x 60 | ∅64 | 32.0 | ∅74 | 37.0 | 45.0 |
| ESC-A05-L | ||||||||
| ESC-B05-A | ∅76.0- ∅77.9 | ESC-A05-XL | ∅76 | 38.0 | ∅82 | 41.0 | ||
| ESC-A05-XXL |
Adapter
Adapter NameBase MoldCableD1d1D2d2D3d3ST1T2T3
| ESC-A01-S | ESC-B01 | ∅5-6.9 | ∅5 | 2.5 | ∅9 | 4.5 | ∅14 | 7.0 | 10.0 | 2.5 | 1.2 | 2.0 |
| ESC-A01-M | ∅7-8.9 | ∅7 | 3 .5 | ∅10 | 5.0 | 2.0 | 2.0 | |||||
| ESC-A01-L | ∅9-10.9 | ∅9 | 4.5 | ∅11 | 5.5 | 1.5 | 1.5 | |||||
| ESC-A02-S | ESC-B02 | ∅13-14.9 | ∅13 | 6.5 | ∅17 | 8.5 | ∅25 | 12.5 | 15.0 | 4.0 | 2.0 | |
| ESC-A02-M | ∅15-16.9 | ∅15 | 7.5 | ∅19 | 9.5 | 3.0 | 2.0 | |||||
| ESC-A02-L | ∅17-18.9 | ∅17 | 8.5 | ∅21 | 10.5 | 2.0 | 2.0 | |||||
| ESC-A02-XL | ∅19-20.9 | ∅19 | 9.5 | ∅21 | 10.5 | 2.0 | 2.0 | |||||
| ESC-A02-XXL | ESC-B02-1 | ∅21-22.9 | ∅21 | 10.5 | ∅22 | 11.0 | 1.5 | 1.5 | ||||
| ESC-A03-S | ESC-B03 | ∅24-25.9 | ∅24 | 12 | ∅27 | 13.5 | ∅35 | 17.5 | 20.0 | 4.0 | 2.0 | |
| ESC-A03-M | ∅26-27.9 | ∅26 | 13 | ∅29 | 14.5 | 3.0 | 2.0 | |||||
| ESC-A03-L | ∅28-29.9 | ∅28 | 14 | ∅31 | 15.5 | 2.0 | 2.0 | |||||
| ESC-A03-XL | ESC-B03-1 | ∅30-31.9 | ∅30 | 15 | ∅32 | 16.0 | 1.5 | 2.0 | ||||
| ESC-A04-S | ESC-B04 | ∅34-36.9 | ∅34 | 17.0 | ∅43 | 21.5 | ∅53 | 26.5 | 30.0 | 5.0 | 3.5 | |
| ESC-A04-M | ∅37-38.9 | ∅37 | 18.5 | ∅44 | 22.0 | 4.5 | 3.5 | |||||
| ESC-A04-L | ∅39-41.9 | ∅39 | 19.5 | ∅45 | 22.5 | 4.0 | 3.5 | |||||
| ESC-A04-XL | ∅42-43.9 | ∅42 | 21.0 | ∅46 | 23.0 | 3.5 | 2.0 | |||||
| ESC-A04-XXL | ∅44-46.9 | ∅44 | 22.0 | ∅47 | 23.5 | 3.0 | 2.0 | |||||
| ESC-A04-XXXL | ESC-B04-1 | ∅47-48.9 | ∅47 | 23.5 | ∅48 | 24.0 | 2.5 | 2.0 | ||||
| ESC-A05-S | ESC-B05 | ∅52-57.9 | ∅52 | 26.0 | ∅60 | 30.0 | ∅74 | 37.0 | 40.0 | 7.0 | 4.0 | |
| ESC-A05-L | ∅58-62.9 | ∅58 | 29.0 | ∅64 | 32.0 | 5.0 | 3.0 | |||||
| ESC-A05-XL | ESC-B05-1 | ∅63-69.9 | ∅63 | 31.5 | ∅70 | 35.0 | ∅82 | 41.0 | 6.0 | 2.0 | ||
| ESC-A05-XXL | ∅70-75.9 | ∅70 | 35.0 | ∅74 | 37.0 | 4.0 | 1.5 |
