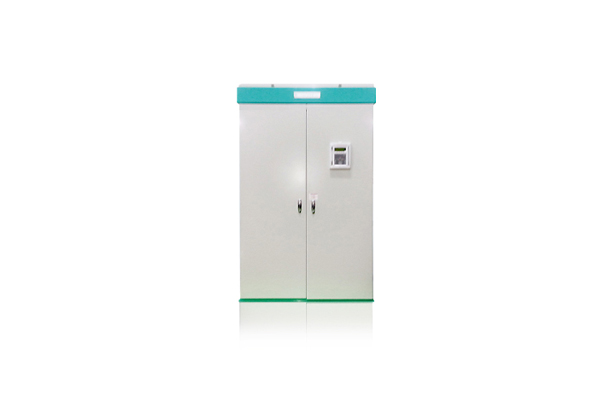

Integral Power Distribution System
This simple power distribution system encloses extra-high-voltage equipment and transformer altogether to lower installation area at 1/4 level, compared to standard power distribution system. It reduces construction costs and its compact structure enables installation nearby load power generation area to minimize construction costs and to maximize the utility of space.
| Rated Voltage [kV] | 22.9 |
|---|---|
| Rated Current [A] | 100~1600 |
| Rated Off-Current [Hz] | 60 |
| Rated Short-Time Current [1Sec] | Max. 50kA |
| Rated Frequency [V] | AC220 / DC110 |
