| Name |

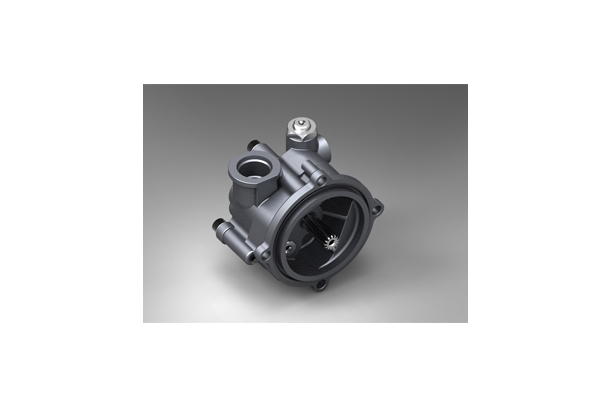

GEAR PUMP K3V SERIES |
| Model | K3V63, K3V112, K3V140, K30V180 |
| Series | GEAR PUMP |
SPECIFICATIONS
| MODEL | K3V63/112 | K3V140/180 | ||
Discharge Rate(cc/rev) | 12 | 15 | ||
Max.Pressure(Kg/㎠) | 50 | |||
Max.Seed(rpm) | 2200 | 2700 | 2500 | 2200 |
DIMENSIONS
| MODEL | A | B | C | D | E | F | G | H | I | SPLINE |
| K3V63/80 | 100 | 5 | 59.8 | 19.2 | 93 | 72.8 | 14.8 | 80 | 6.6 | Z13 |
| K3V112/140 | 112 | 90 | 9 | Z13 | ||||||
| K3V140/180 | 138 | 62.8 | 16.2 | 96 | 75.8 | 100 | 11 | Z13 |
