Design Features
Capacity ------------------------------------ up to 3000 CMM
Pressure ----------------------------------- up to 1500 mmAq
Impeller Size --------------------------- 200 up to 2000 mm
Casing thickness ----------------------------1,5 up to 20 mm
Impeller types ------------------------TCS, PCS, SCS, BCS
Motor frame size -------------------------------- 63 up to 315
-Electricity supply ; single or three-phase to suit a wide range of voltages and frequencies
-M otors maker ; Korea & Overseas Ex e, Ex d.
Drive type ------------------ Direct-, coupling- or belt drive
Casing form ---- combined casing, swing out shot casing Surface treatment --- Primer, finish, hot-dip galvanized
Material
-Impeller ------------- aluminium, steel, stainless steel
-Casing ---------------------------- Steel , stainlesssteel
Special design
-Flame-proof, extreme temperature, gas-tight, Corrosion resistant, according to requirements
Mixed Fan
Model MXL is designed for clean air applications which permit the location of the motor in the airstream. Unique blade design maximizes energy transfer to the airstream with minimum noise.
Performance
Impeller Sizes --------------------------------------------------- 300, 350 diameters
Airflow -------------------------------------------------------------------- 20 to 40 CMM
Static pressure ------------------------------------------------------------to 50 mmAq

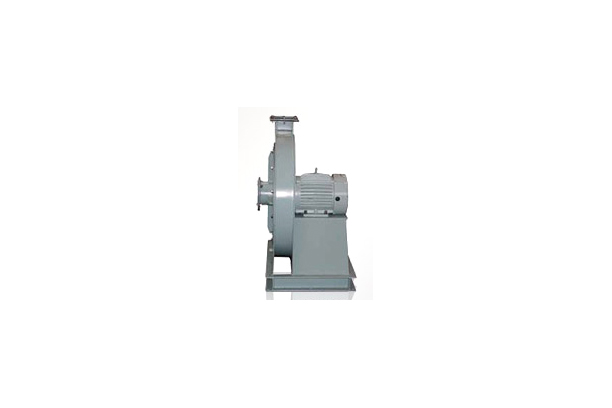

VENTIA Blower Type CBS Pressure Blowers are designed for highpressure, industrial-process applications.
All applications can be handled in either induced draft configurations or forced-draft. Numerous modifications and accessories make the Type CBS Pressure Blower suitable for a wide range of systems.
For lower pressures and volumes.
Design Features
Capacity -------------------------------------- to 2000 CMM
Pressures ------------------------------------- to 1500 mmAq
Temperatures -------------------------------- to 300 Drgee
Impeller Material ---------------------------- Aluminum, Steel
Casing Material ------------------- Steel, Stainless Steel. etc.
