Manufacturer of garlic planter and onion farming machine
Inquiry
Name

Full automatic working

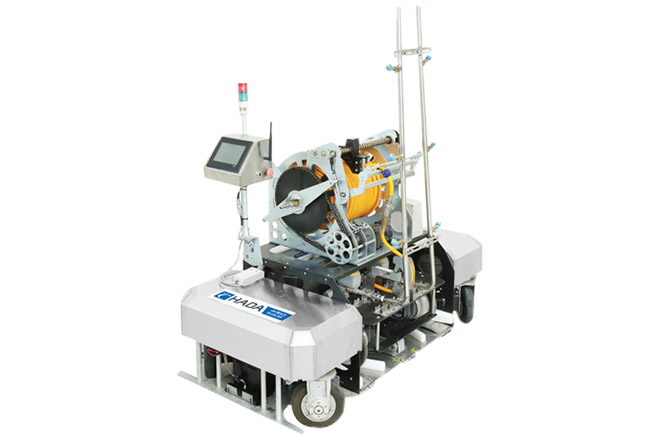

Series Agricultural robots
Product Description




Full automatic working

Controllable spraying capacity

Customized-spray boom pipe

Low labor cost and safe from noxious environment






Product specification

  • ModelSupplyerSprayer robot
  • L X W X H1500 X 900 X 1350mm750 X 530 X 2000mm
  • Weight150kg30kg
  • Working speedMax 2.0 m/sMax 1.5 m/s
  • Performance5~6L / min: 18 m/min
    12L / min: 36m/min ~ 100 m/min
  • Operating time3~4 hour
  • Communication distance150m
  • Working efficiency2,314㎡~3,305㎡ / 1 hour
  • Remarks주행 레일은 별도 구성 / 양액통은 사용자 위치 고정


CEROS Necessity

Precise timinqWorkforce shortage resolutionWorkforce shortage resolution




CEROS Advantage

Spray angle adjustableCustomizableAutomatic winding function




Nozzle type and sprayable representative crop
Nozzle shape can be customized according to crop



  • Max. Distance: 1.5M / Number of nozzles 10Applied crops: strawberries, flowers, etc.

  • Max. Separation distance: 3M / Number of nozzles 12 (Maximum 22)Applied crops: tomatoes, paprika, cucumber, etc.


Distribution status


Products of HADA
