Name

ESS Electronic Products

Series Industrial Cable
Product Description

ESS is a system that enhances power efficiency by saving energy in the storage device while power consumption is low, and supplying it when demand is high. The ESS industry is forecast to show high growth as it is supported by government and prices of batteries will be lower. As secondary battery manufacturers enter the ESS market, the demand for ESS battery electronic products using secondary batteries is increasing. Based on our eco-friendly car battery pack electronic product development technology, we are supplying ESS electronic products, harness modules for battery modules, and connectivity modules for connection among modules.



Types and purposes

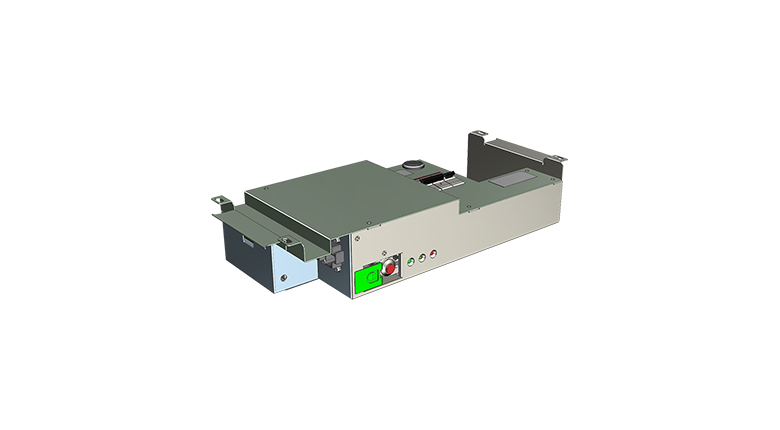

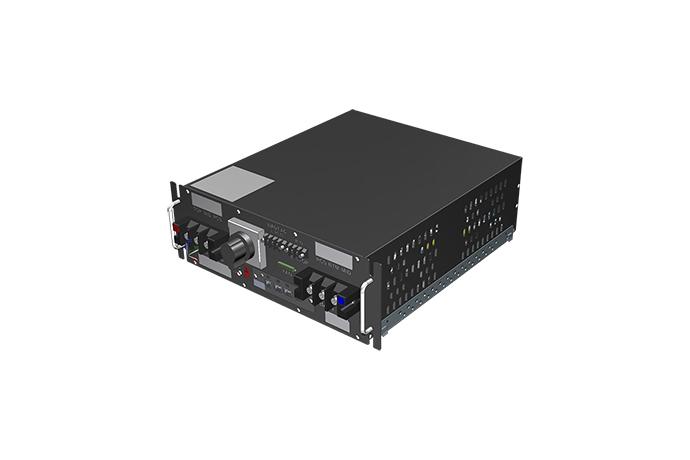

• BPU (Battery Protection Unit): Electronic box
Basically mounted with a BMS, the BPU protects rack units, converts charging/discharging modes, and transmits signals through voltage/current performance monitoring.

• Battery pack harness module
Various structures within the cable assembly pack for power withdrawal, and movement signal monitoring Modularizes and supplies terminal blocks, fuses, and inter connection boards

• External connectivity (Rack harness)
The best assembly construction for connection between battery packs and electronic boxes



Benefits

Customized BPU for Battery Pack system
Compact size, enables system construction according to standard rack specification
Minimizes faults and secures assembly by modularizing inner harness
Adopts optimized cable and connector components according to system requirements
Maximizes assembly through various structures and modules for the battery module
Selects connectivity layout according to system configuration and assembly (F. busbar, Cable, Busbar, etc.)



Main functions

• BPU (Battery Protection Unit): Electronic box
  - Protection of battery pack system in rack units
  - Installed with BMS for battery module control in rack units
  - System protection and performance monitoring in case of accident

• Battery pack harness module
   - Harness for series and parallel connection of battery modules
   - Signal harness for monitoring the performance of modules (temperature, voltage, etc.)
   - Assembly enabled through modularization of structures such as brackets and ICBs

• External connectivity (Rack harness)
  - Flexible busbar for connectivity of electronic box and battery module
  - Power/Signal harness for connectivity among racks
  - General connectivity module for assembling
