Engine and accessories for small craft
Features
1. We apply to variety of business development for optimization the Engine.
2. For a small ship, The prevalence of technology is developed on the variety of forms and objectives.

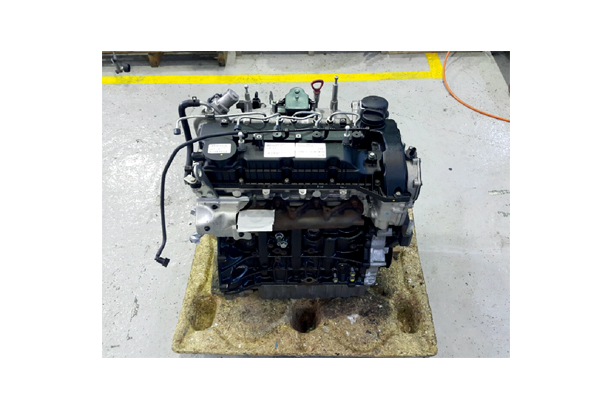

Engine
Part
Specification
| Power(HP) | 125 | 170 | 270 | 380 | 500 |
| Max Power / rpm | 125PS / 4,000rpm | 170PS / 800rpm | 270PS / 3,800rpm | 380PS / 1,800rpm | 500PS / 1,800rpm |
| Max Torque / rpm | 26.3kg’m / 2,000rpm | 36kg’m / 2,000rpm | 57.6kg’m / 2,000rpm | 170kg’m / 1,100rpm | 232kg’m / 1,100rpm |
| Displacement Volume (BorexStroke) | 1,582cc (77.2mmX84.5mm) | 2,184cc (87mmX92mm) | 2,959cc (84mmX89mm) | 9,960cc (122mmX142mm) | 12,736cc (133mmX160mm) |
| Weight (kg) | 220kg | 261kg | 334kg | 1,120kg | 1,310kg |
* The above may change during further development.
Engine Dynamo-Test
Engine Performance Test Equipment
Max Capacity : 800Hp
Torque : 500 kg-m
Max. Speed : 8000 rpm
Display & Measurement
Cooling Water Temperature
Pressure Drop
Durability Test
Reliability Test
Auto-Test Function
Power / Torque / Speed
ECU Mapping
Oil Pressure
Oil Flow
Oil Temperature
