| Name |
Butt weld fittings |

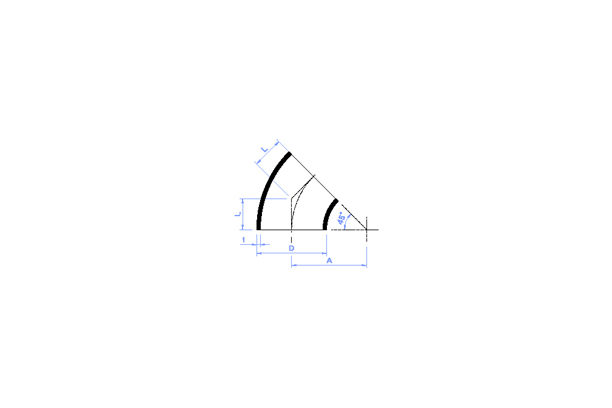

| Model | 45DEG ELBOW |
| Series | Butt weld fittings |
| Catalog | haewon-ind__118859_oknnhw-rrksmGj.pdf |
＊LR 10,14BAR
Ref : HW-ELB1103
Material : CuNi 90/10 CuNi 70/30
Dimension : DIN 86090
＊LR 16BAR
Ref : HW-ELB1104
Material : CuNi 90/10 CuNi 70/30
Dimension : EEMUA 146
＊LR 20BAR
Ref : HW-ELB1105
Material : CuNi 90/10 CuNi 70/30
Dimension : EEMUA 146
