Name

BALL FLOAT TYPE

Model Ball Float Check Valve
Series Air Vent Head
Product Description

General Description

IACS P3 “AIR PIPE CLOSING DEVICE”

IACS S27 “STRENGTH REQUIREMENTS FOR FORE DECK FITTINGS AND EQUIPMENT"

STANDARD COATING : HOT DIP GAL'V.

JIS, ANSI, DIN etc FLANGE

Standard Wire Mesh : 30mesh / 5mesh

SE-WON Air Vent Head consists of two chambers and float. The outer chamber is connected to the top of air pipe line by means of flange type connection, and the inner chamber has side opening through which air flows freely at normal condition, but when water is coming into the Air Vent Head, the stainless steel disk ball or float close up the opening of the outer chamber and the entered water is drained through side openings.

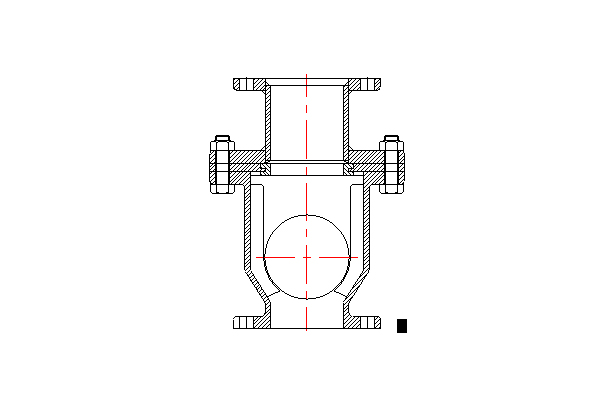

Ball Float Check Valve

- Combined to air vent head

- Body : Ductile Cast Iron

- Ball Float : Stainless Steel

- Size : 65~300A

- JIS, ANSI, DIN etc Flange

- To prevent splashing of Heavy Fuel out of tank
